luminance meter(Spectroradiometer CS-2000)

- Wavelength range : 380 to 780 nm
- Low-luminance measurement: From 0.003 cd/m2 (Measuring angle: 1°)
- Measurement accuracy: ±2% (Luminance)
- Wavelength resolution : 0.9 nm/pixel
- Display wavelength bandwidth: 1.0 nm
- Wavelength precision: ±0.3 nm (median wavelength: 435.8nm, 546.1 nm, 643.8 nm Hg-Cd lamp)
- Spectral bandwidth: 5 nm or less (half bandwidth)
- Measuring angle (selectable): 1°, 0.1°, 0.2°
- Polarization error : 1°: 2% or less (400 to 780 nm); 0.1° and 0.2°: 3% or less (400 to 780 nm)
- Measurement time : 2 sec min. (Manual mode) to 243 sec. max. (Normal mode)
- Color space mode : LVxy, Lvu'v', LvTΔuv, XYZ, dominant wavelength, spectral graph

Electronic Device(Keithley 236)

- Source voltage: 100 &\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\#181;V to 110 V
- Source current: 100 fA to 100 mA
- Measure voltage: 10 &\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\#181;V to 110 V
- Measure current: 10 fA to 100 mA

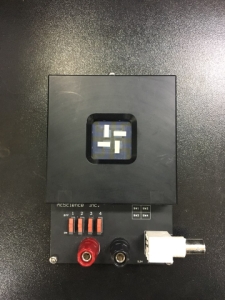

Jig Unit

- Top & Bottom Type Sample
- cell size : 30 x 30 mm
- Pogo Pin Contact
- 2 Probe
